Wing Type

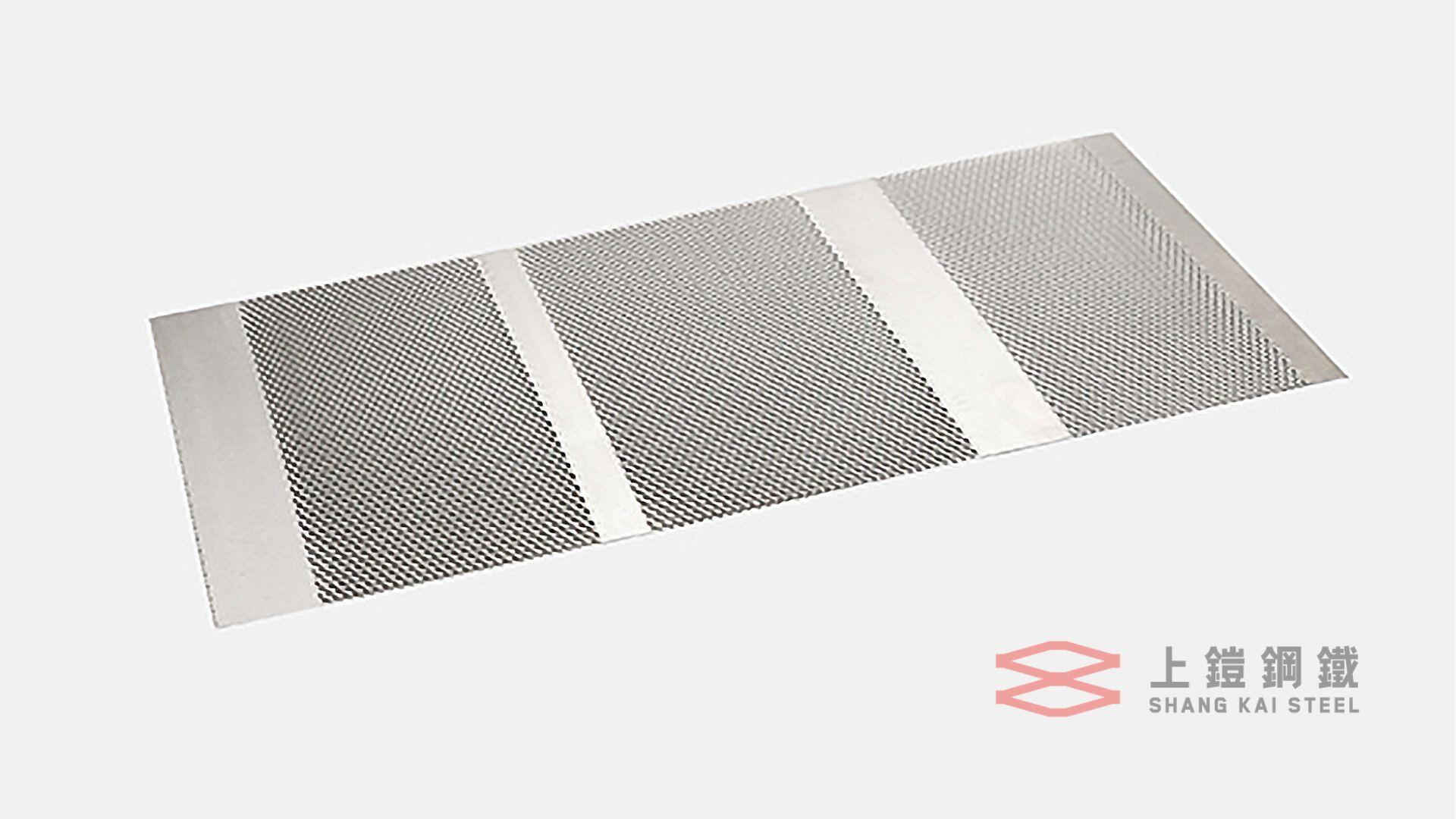

Wing Type Mesh is made from metal sheets with adjustable mesh patterns, allowing the mesh size and unexpanded sections to be customized according to customer requirements. Its unexpanded borders can be folded, welded, or formed into specific shapes to improve joint strength and application flexibility. Customers may choose different border styles on both sides or alternating spacing designs. With its flexible structure and design adaptability, Wing Type Mesh is widely used in industrial design, furniture, lithium batteries, electronics, medical devices, technology products, and sports equipment.

ThicknessLWSWSTYLEMaterialSheet Size LWM x SWM
0.05T-1.5T10.5SKW-A: Center Margin /
  Middle Blank Spacing

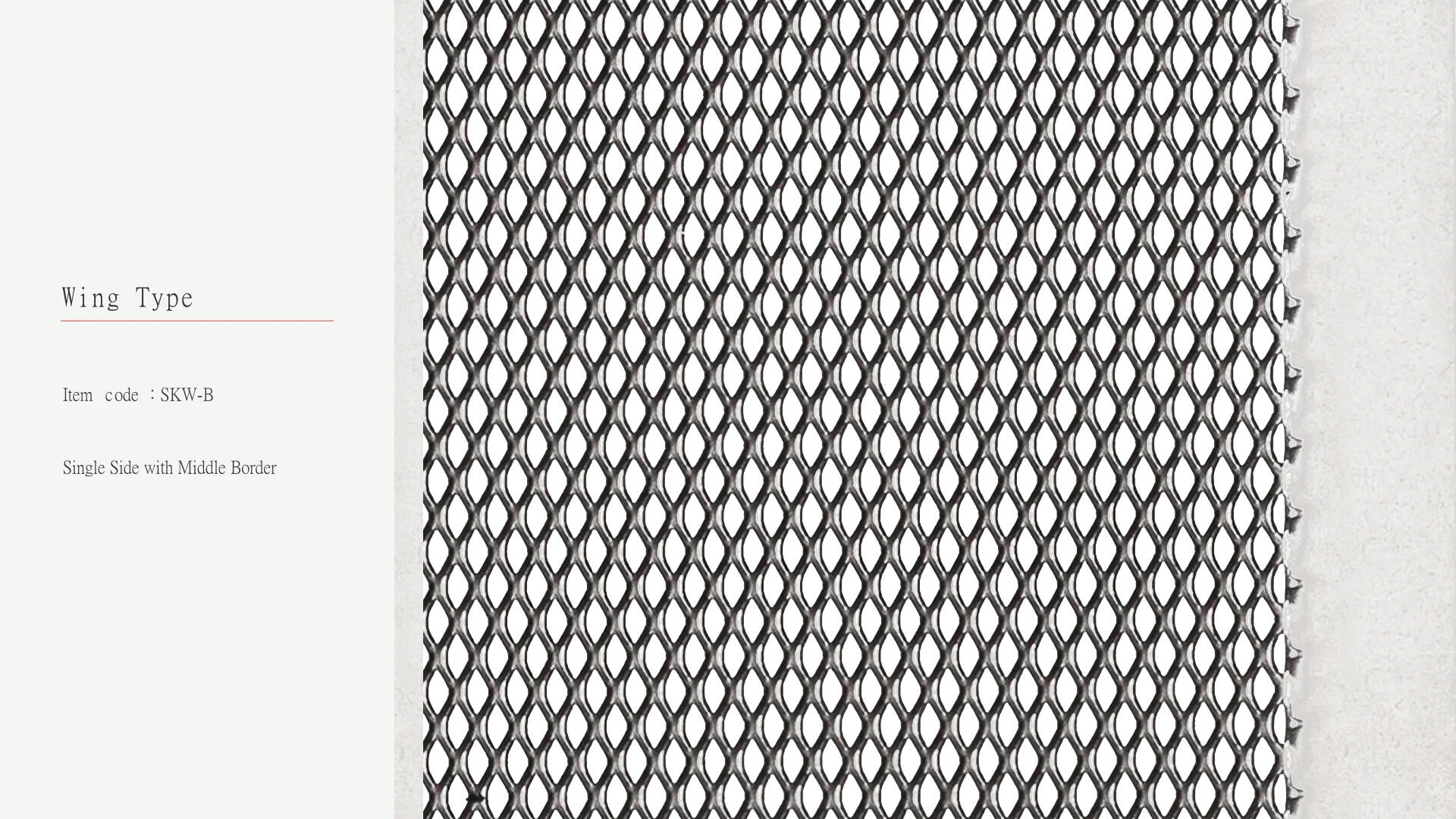

SKW-B: Top Margin with
Center Blank Space

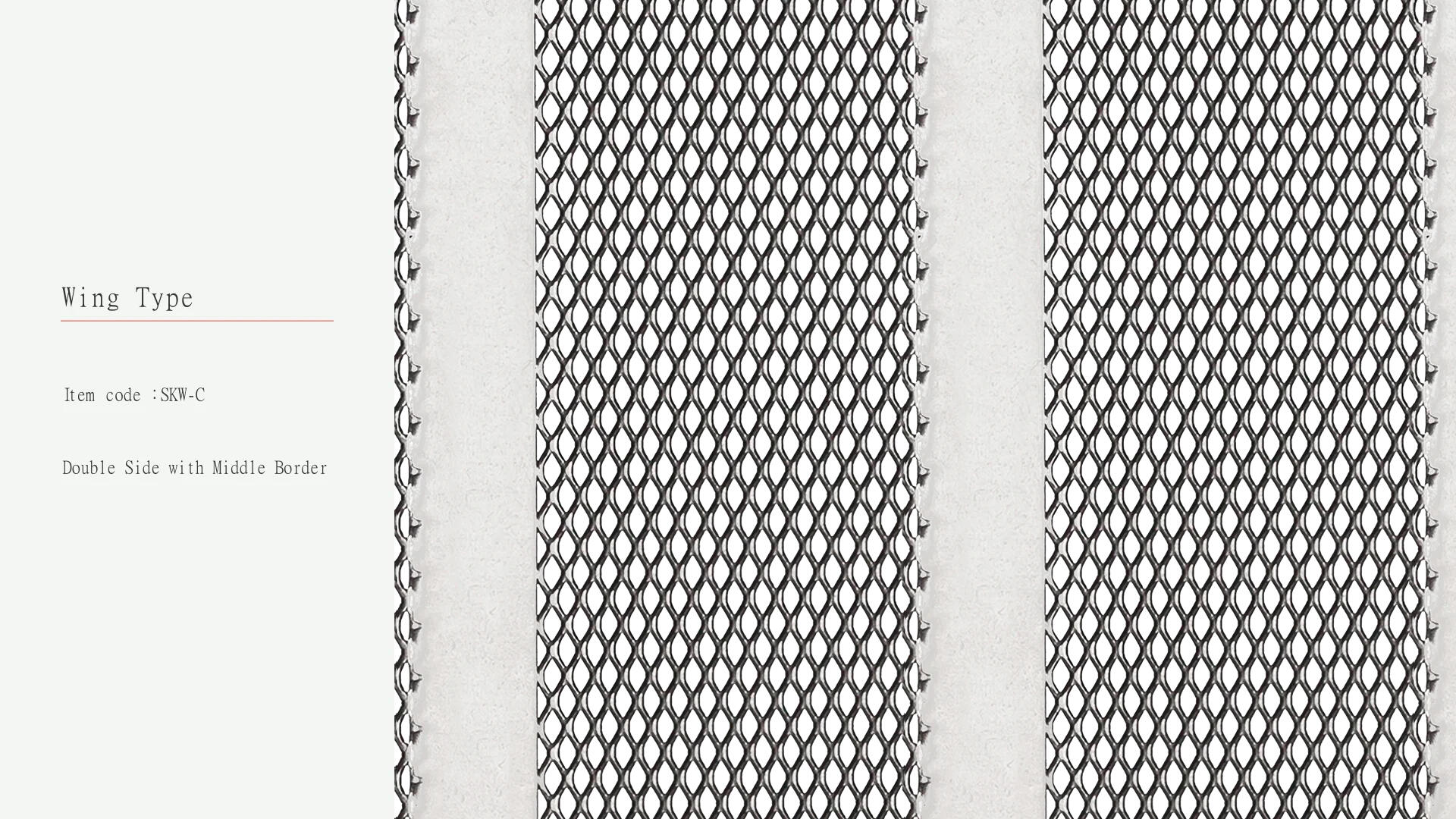

SKW-C: Top / Bottom Margins
+ Multiple Center Blank
Spaces

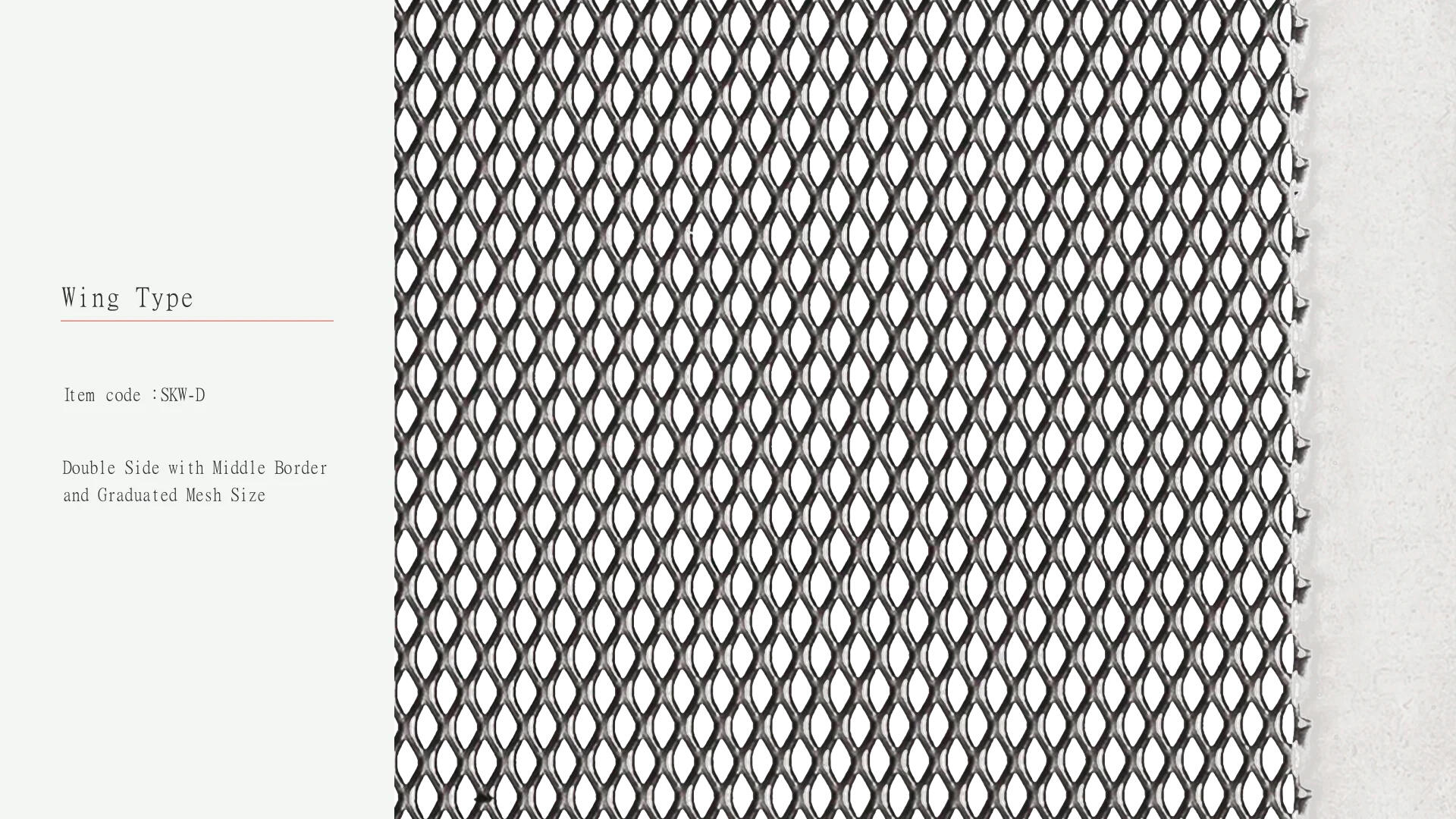

SKW-D: Top / Bottom Margins
with Graduated
Mesh Size		steel,
stainless steel,
aluminum,
hot-dip
galvanized,
galvanized steel plate,
copper,
titanium,
silver,
gold, or any
other special
metal materials
have ductility.		customized size
by roll or pices
12
24
36
48
510
612
714
812
1020



  • Units: (mm) / millimeters
  • We provide customized expanded metal solutions, including material selection, thickness, mesh opening ％,  mesh dimensions, sheet size, surface treatment, and other specification requirements.
Wing Type｜Key Advantages
Mesh size can be customized according to different product needs.
Available with Top/Bottom Margins + Multiple Center Blank Spaces designs.
Can be applied in lithium battery components to support ion interaction and energy performance.





Q&A
Q1: What is Wing Type mesh?
A: Wing Type is a customized expanded metal mesh made with metal plates and mesh structures, designed for flexible forming and special edge requirements.





Q2: Can the mesh size be customized?
A: Yes. The mesh size can be adjusted based on customer requirements and application needs.





Q3: Can Wing Type be used in battery applications?
A: Yes. It can be used in lithium battery ion interaction interfaces to support electrical energy generation and improve performance.





Q4: Where can Wing Type be applied?
A: It is suitable for technology, medical devices, electronics, product design, sports equipment, and other industrial applications.
Expanded Metal Technical Specifications

  • SW: Short Way Dimension of Mesh
    Distance between centers in the short way direction of the mesh.
  • LW: Long Way Dimension of Mesh
    Distance between centers in the long way direction of the mesh.
  • Strand Width:
    The width of each strand forming the diamond-shaped opening.
  • LWM: Length
    Direction of the LW diamond.
  • SWM: Width
    Direction of the SW diamond.
  • Thickness: Material Thickness
  • Overall Thickness:
    The overall thickness can be approximately 1 to 2.5 times the material thickness.
  • All thickness, strand width, and weight are subject to a tolerance of +/-5%.
  • Standard sheet sizes: 3' x 6', 4' x 8', 5' x 10' and 8' x 4', 10' x 5' (LWM x SWM)



Mesh Style
  • Standard / Raised type:
    Standard expanded metal, also known as raised expanded metal or 3D mesh type, is produced by slitting and stretching a metal sheet to form diamond-shaped openings.
  • Flattened type:
    Flattened expanded metal, also known as 2D type, is made by passing standard expanded metal through a rolling process to flatten the raised strands and joints.



               Standard / Raised type                                                            Flattened type



通用標準尺寸
擴張網尺寸直式



擴張網尺寸橫式



擴張網客製化尺寸



Meterials
Mild Carbon steel, Stainless steel, Aluminum, Pre-galvanized steel sheet, Electro-galvanized steel sheet, Corten Steel, copper, titanium, nickel, silver, gold, and other ductile metal materials.




Surface Treatment
Hot-dip Galvanizing (Steel), Powder coating, Anodizing treatment, Fluorocarbon coating
