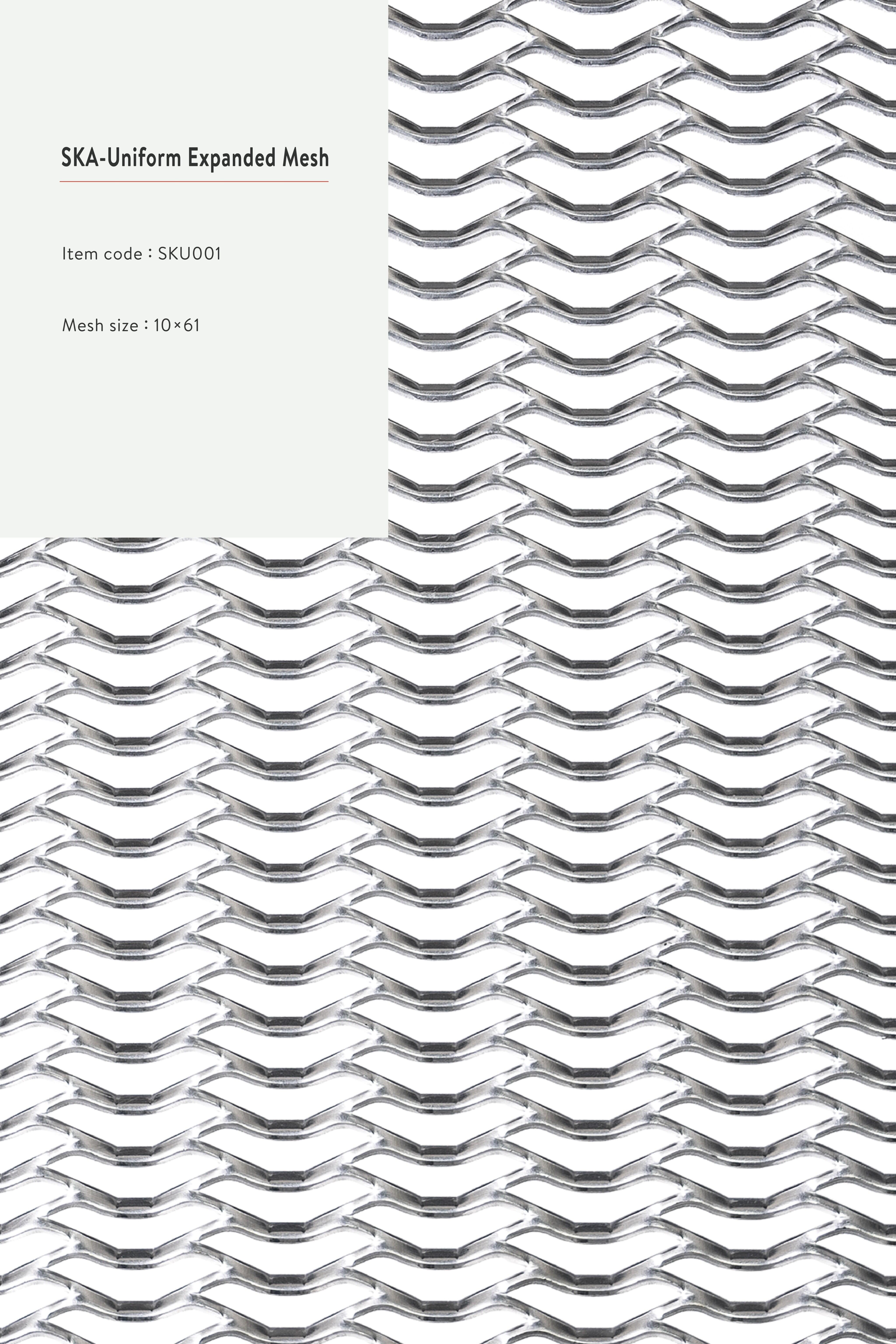

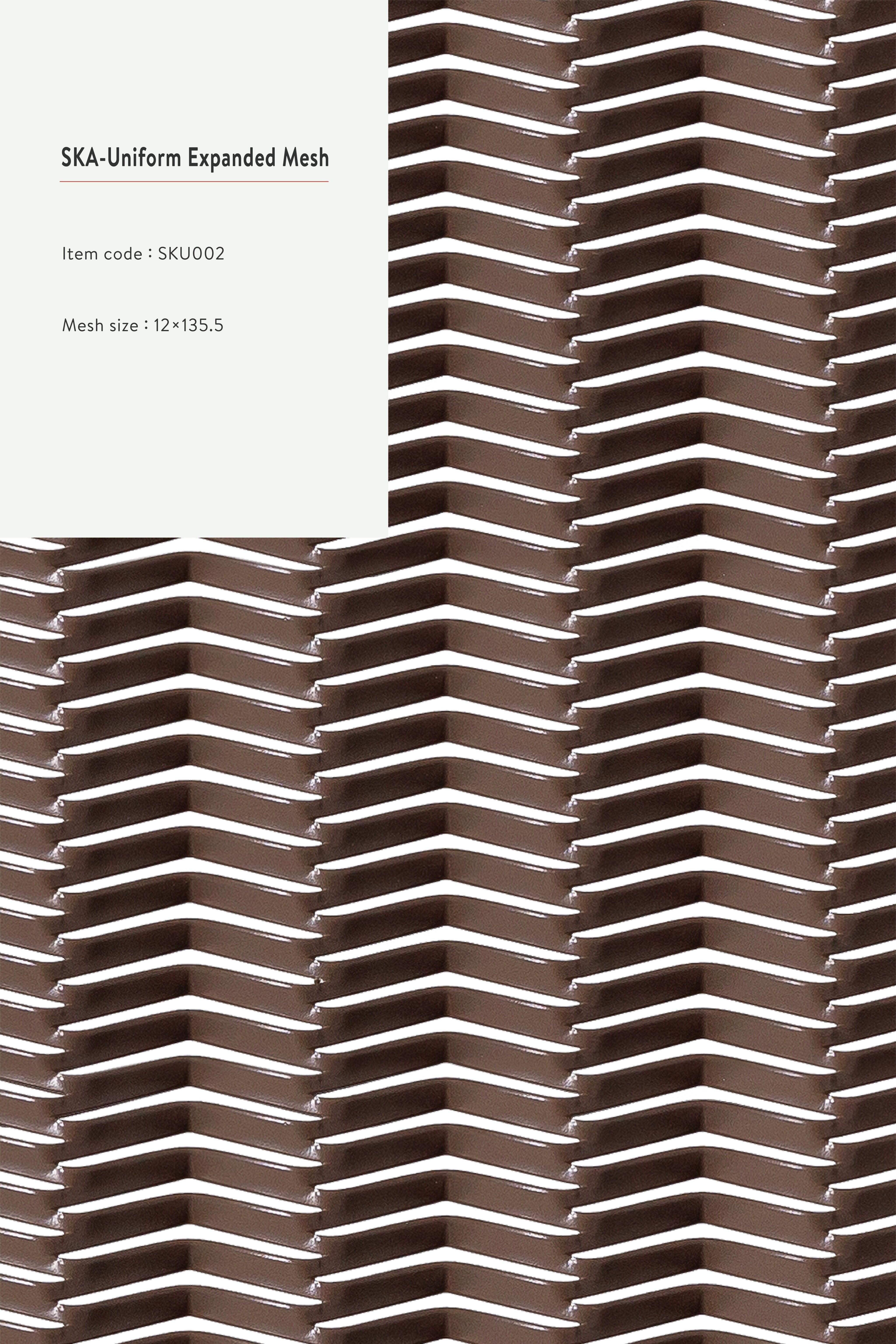

SKA-Uniform Expanded Mesh

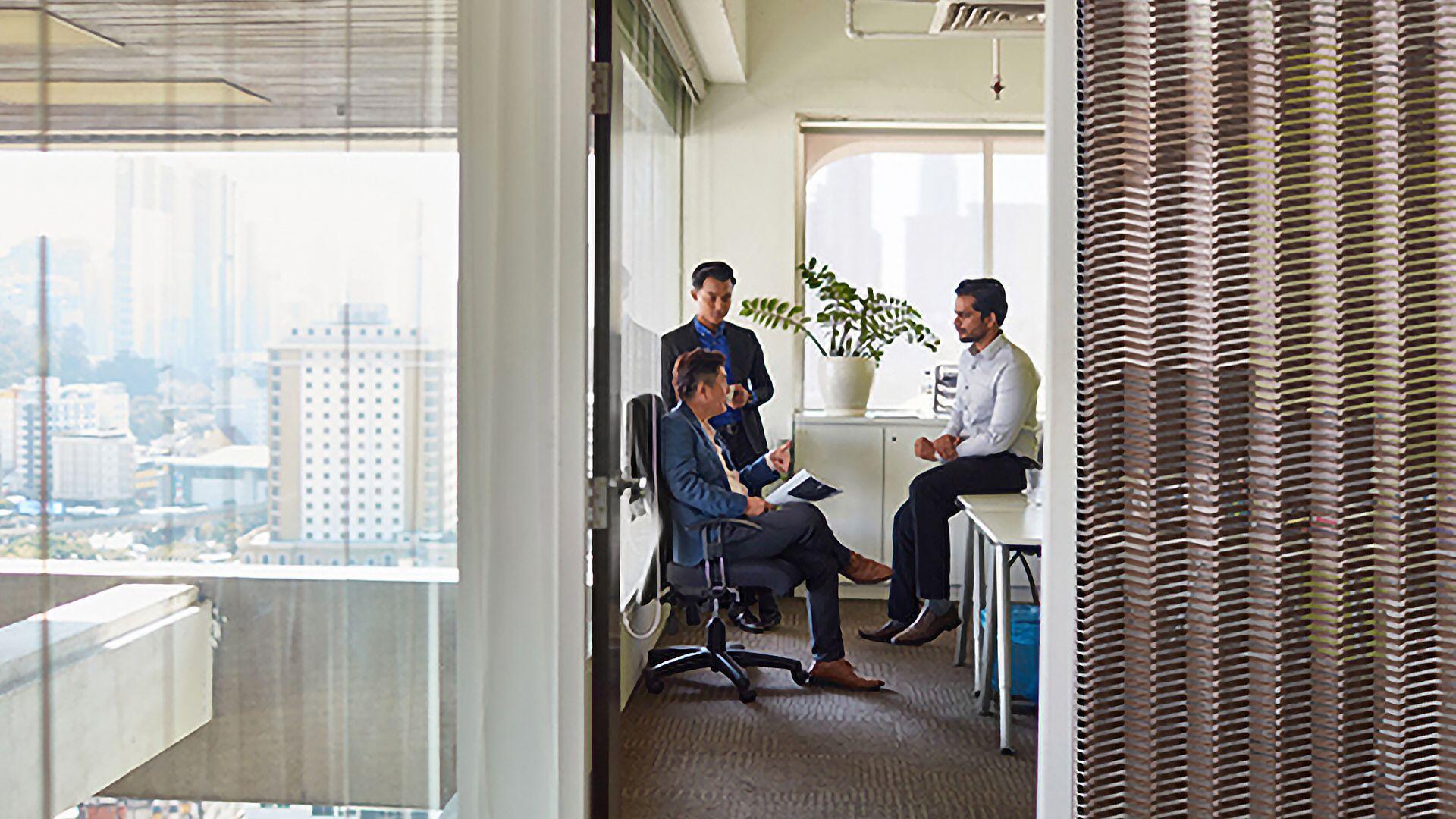

SKA-U Overlapping Expanded Metal creates rich visual depth through layered mesh design. By combining structure, color, and material, Shang Kai Steel transforms simple overlapping techniques into diverse architectural expressions. This design gives architects greater creative freedom while maintaining each element’s function. Backed by years of research and manufacturing expertise, SKA-U delivers customized, precise, and artistic solutions for distinctive interior designs.

ThicknessLWSWOpening%MaterialSheet Size
LWM x SWM
1.5-3.0T5010-2010% to 20%Aluminum
Carbon steel,
Stainless steel, and
Pre-galvanized steel.		Common sizes:
1220x2440
1525x3050
Max Size, Portrait:
1525 x 12000
Max Size, Landscape:
3050 x2200
60
75
101
115
135
152
175



  • Unit: mm
  • We provide customized expanded metal solutions, including material selection, thickness, mesh opening％,  mesh dimensions, sheet size, surface treatment, and other specification requirements.
Key Advantages
High Strength

Cost-effective

Lightweight

  • High Strength
    Engineered and process-verified to deliver durability and stable structural performance.
  • Cost-effective
    Achieves an optimal balance between performance and project budget requirements.
  • Lightweight
    Reduces structural load while improving installation efficiency and ease of handling.





Customized Solutions & Specification Support
Q1: Can products be customized beyond the standard catalog specifications?
A: Yes. Shang Kai Steel provides customized expanded metal solutions based on project requirements, including material selection, thickness, mesh opening, dimensions, surface treatment, and special application specifications.





Q2: How can special applications or custom requirements be evaluated?
A:Simply provide drawings, application details, loading requirements, or design concepts, and our professional team will assist in recommending the most suitable specification and solution for your project.



Q3: What are the main advantages of expanded metal?
A: Expanded metal offers an excellent combination of strength, lightweight properties, and cost efficiency, making it suitable for a wide range of architectural and industrial applications.



Q4: What are the benefits of its lightweight design?
A: Its lightweight structure helps reduce overall structural load while improving installation efficiency, transportation convenience, and ease of on-site handling.



Expanded Metal Technical Specifications

  • SW: Short Way Dimension of Mesh
    Distance between centers in the short way direction of the mesh.
  • LW: Long Way Dimension of Mesh
    Distance between centers in the long way direction of the mesh.
  • Strand Width:
    The width of each strand forming the diamond-shaped opening.
  • LWM: Length
    Direction of the LW diamond.
  • SWM: Width
    Direction of the SW diamond.
  • Thickness: Material Thickness
  • Overall Thickness:
    The overall thickness can be approximately 1 to 2.5 times the material thickness.
  • All thickness, strand width, and weight are subject to a tolerance of +/-5%.
  • Standard sheet sizes: 3' x 6', 4' x 8', 5' x 10' and 8' x 4', 10' x 5' (LWM x SWM)



Mesh Style
  • Standard / Raised type:
    Standard expanded metal, also known as raised expanded metal or 3D mesh type, is produced by slitting and stretching a metal sheet to form diamond-shaped openings.
  • Flattened type:
    Flattened expanded metal, also known as 2D type, is made by passing standard expanded metal through a rolling process to flatten the raised strands and joints.



               Standard / Raised type                                                            Flattened type



通用標準尺寸
擴張網尺寸直式



擴張網尺寸橫式



擴張網客製化尺寸



Meterials
Mild Carbon steel, Stainless steel, Aluminum, Pre-galvanized steel sheet, Electro-galvanized steel sheet, Corten Steel, copper, titanium, nickel, silver, gold, and other ductile metal materials.




Surface Treatment
Hot-dip Galvanizing (Steel), Powder coating, Anodizing treatment, Fluorocarbon coating
