Fire Protection Type
Shang Kai Steel’s Fire Protection Type can be covered with different kinds of fire resistant coatings that will increase the metal’s durability and strength. It is an ideal match for concrete and plaster, making seamless structures and pillars. The implementation is easy while the advantages are numerous.
| Product Ref | Thickness | LW | SW | Kg/m2 | Material | Sheet Size LWM x SWM |
| SKFP 0.8KG | 0.4 | 20 | 10 | 0.8 | Pre-galvanized Steel and Stainless steel | 1220x100 1220x150 1220x200 1220x250 1220x300 1220x100’ 1220x2440 2440x610 2440x1220 Customized Size |
| SKFP 0.92KG | 0.4 | 20 | 10 | 0.92 | ||

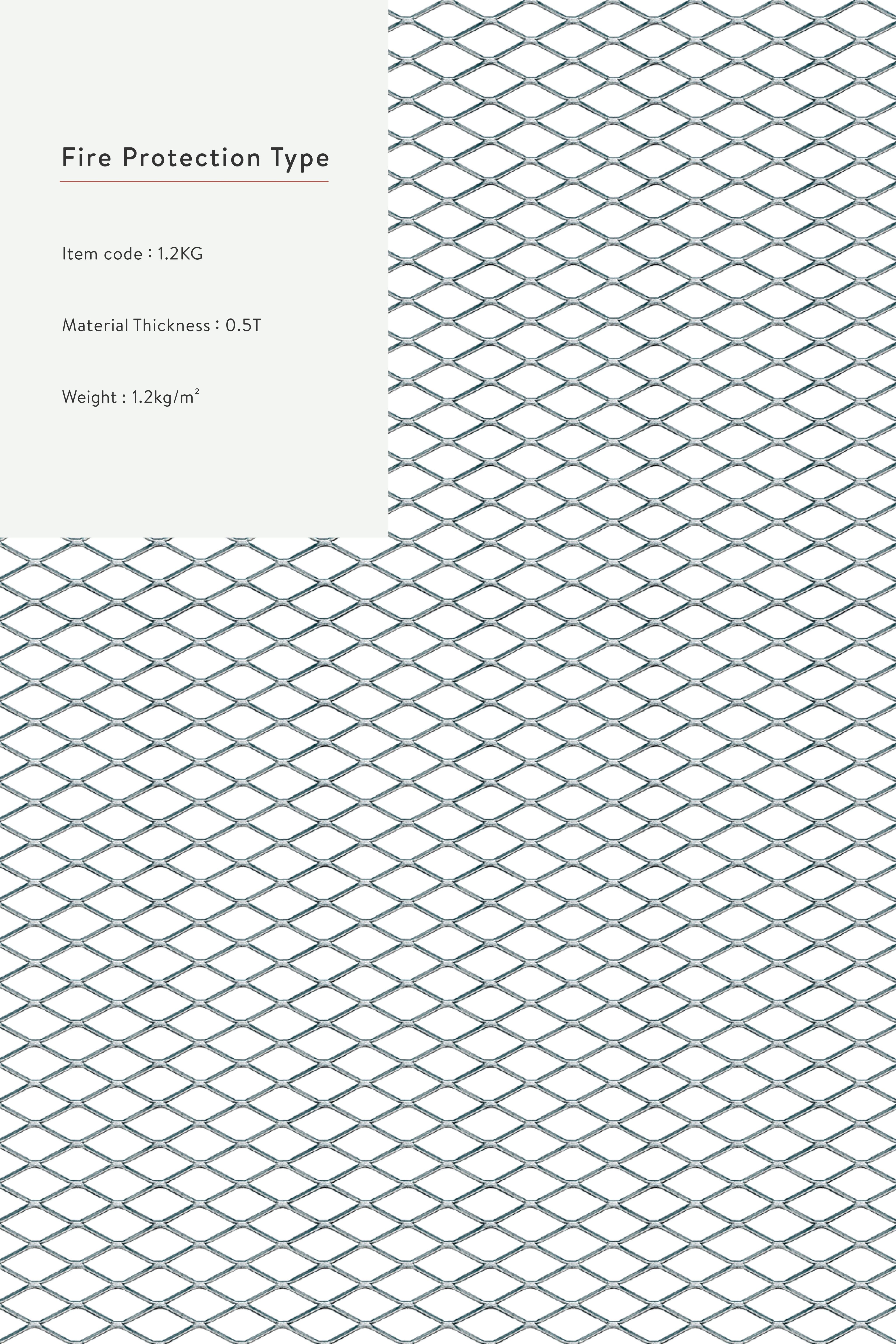

| SKFP 1.2KG | 0.5 | 20 | 10 | 1.2 | ||

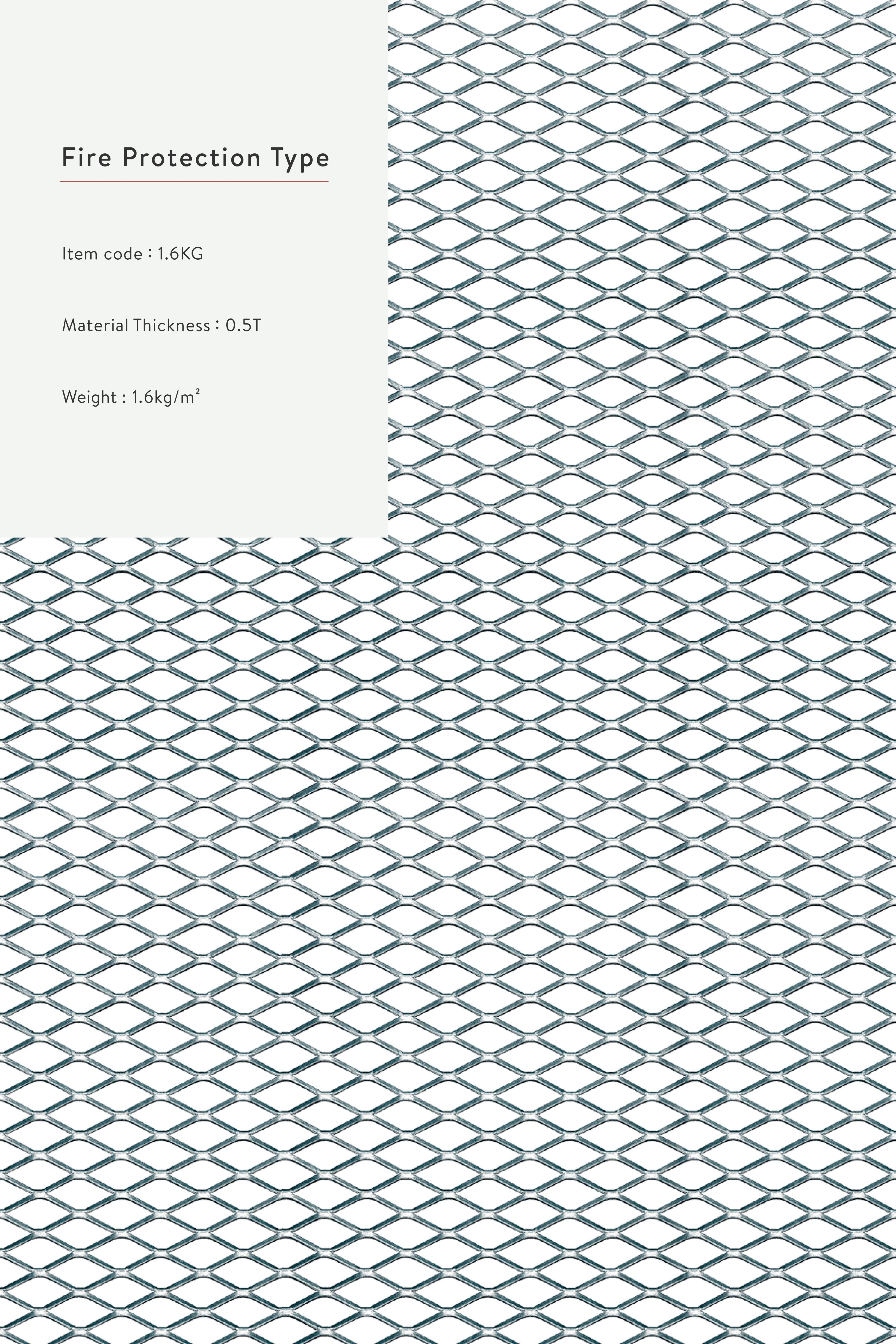

| SKFP 1.6KG | 0.6 | 20 | 10 | 1.6 | ||

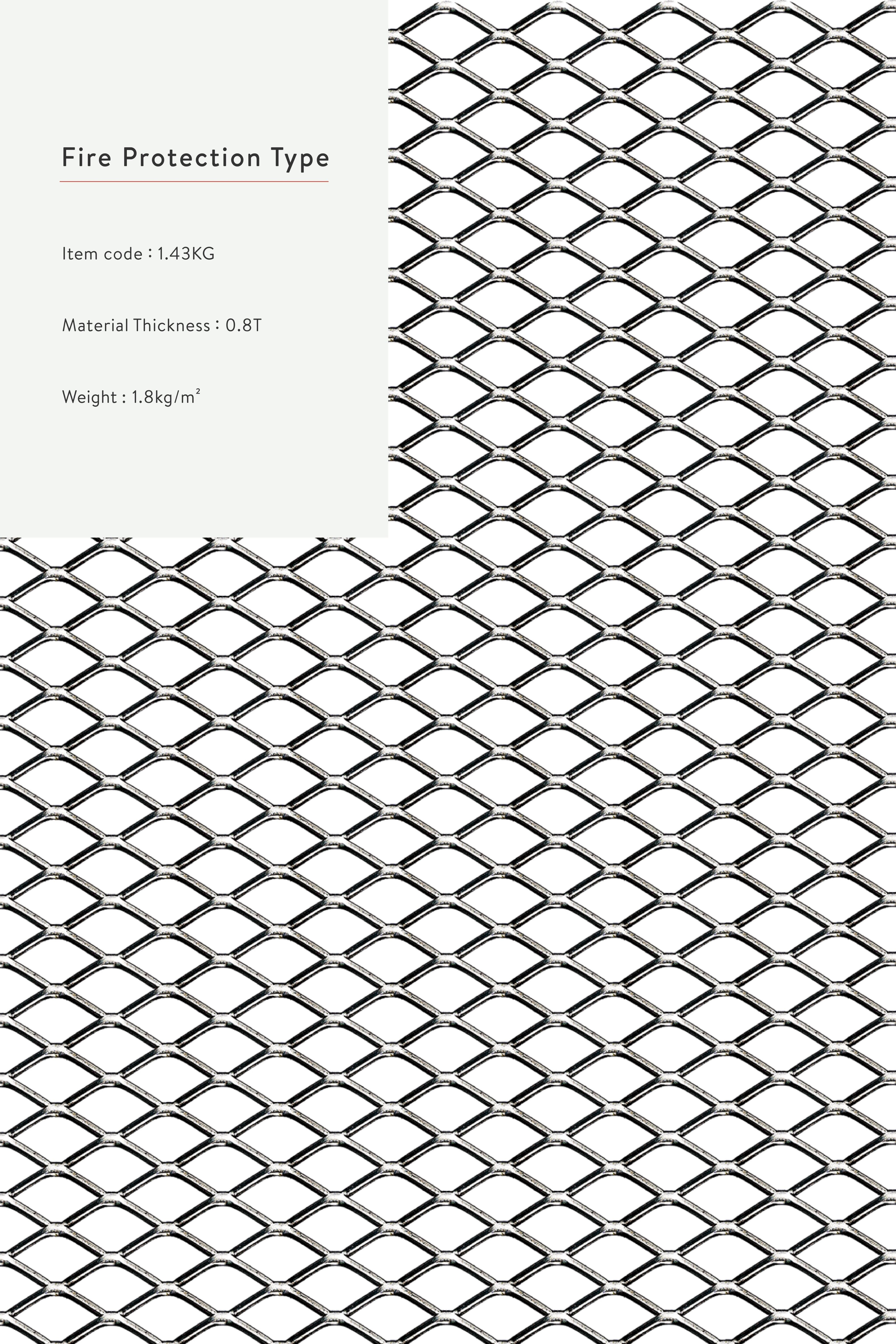

| SKFP 1.43KG | 0.8 | 20 | 10 | 1.8 | ||

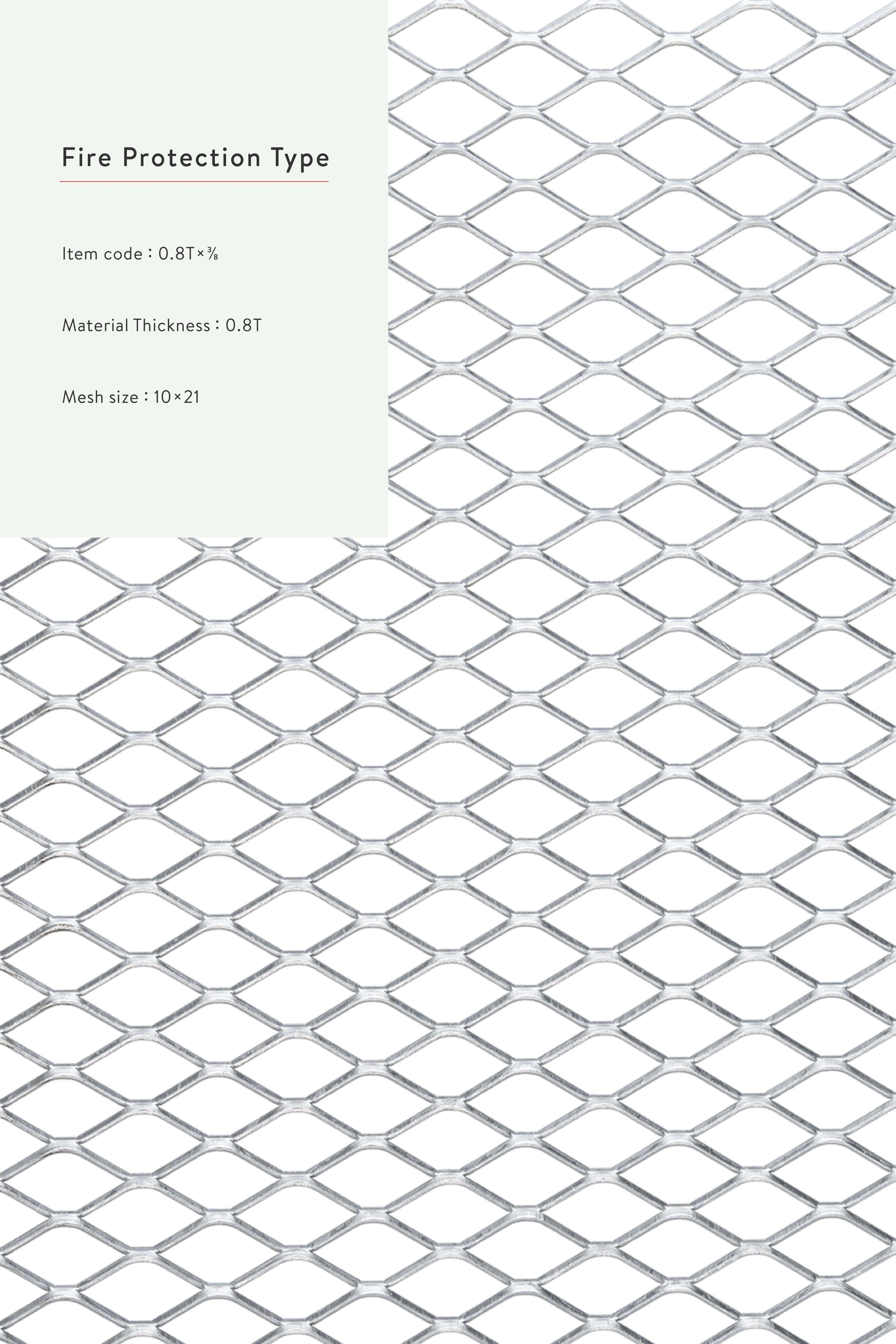

| SKFP 0.8Tx3/8 | 0.8 | 21 | 11 | 1.84 | ||

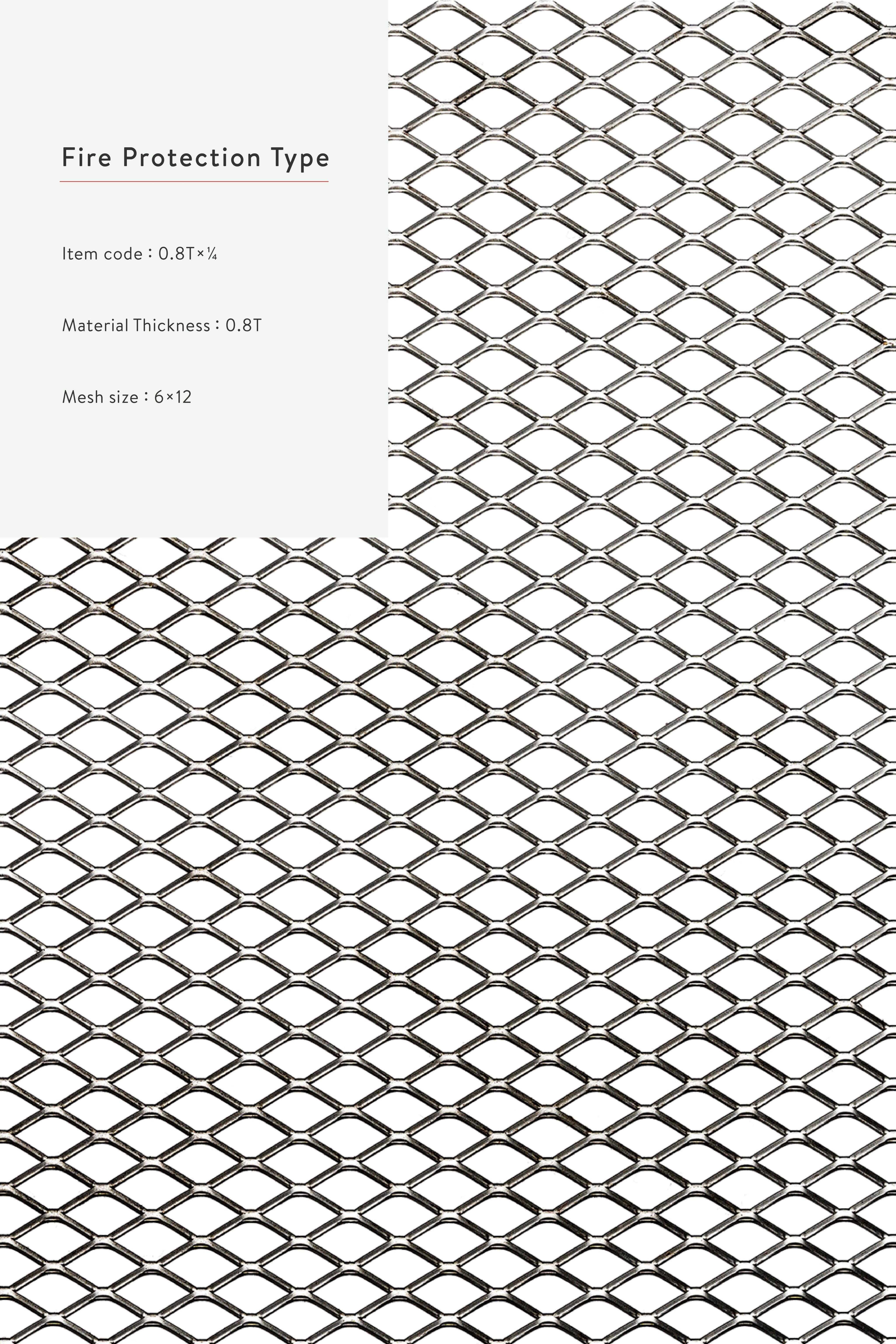

| SKFP 0.8Tx1/4 | 0.8 | 24 | 12 | 1.16 |
| Product Ref | Recommended Applications |
| 1.43KG | Partitioning, 4 hrs fire proofing, suspended ceiling. |
| 1.6KG | Partitioning, 2 hrs fire proofing, suspended ceiling. |

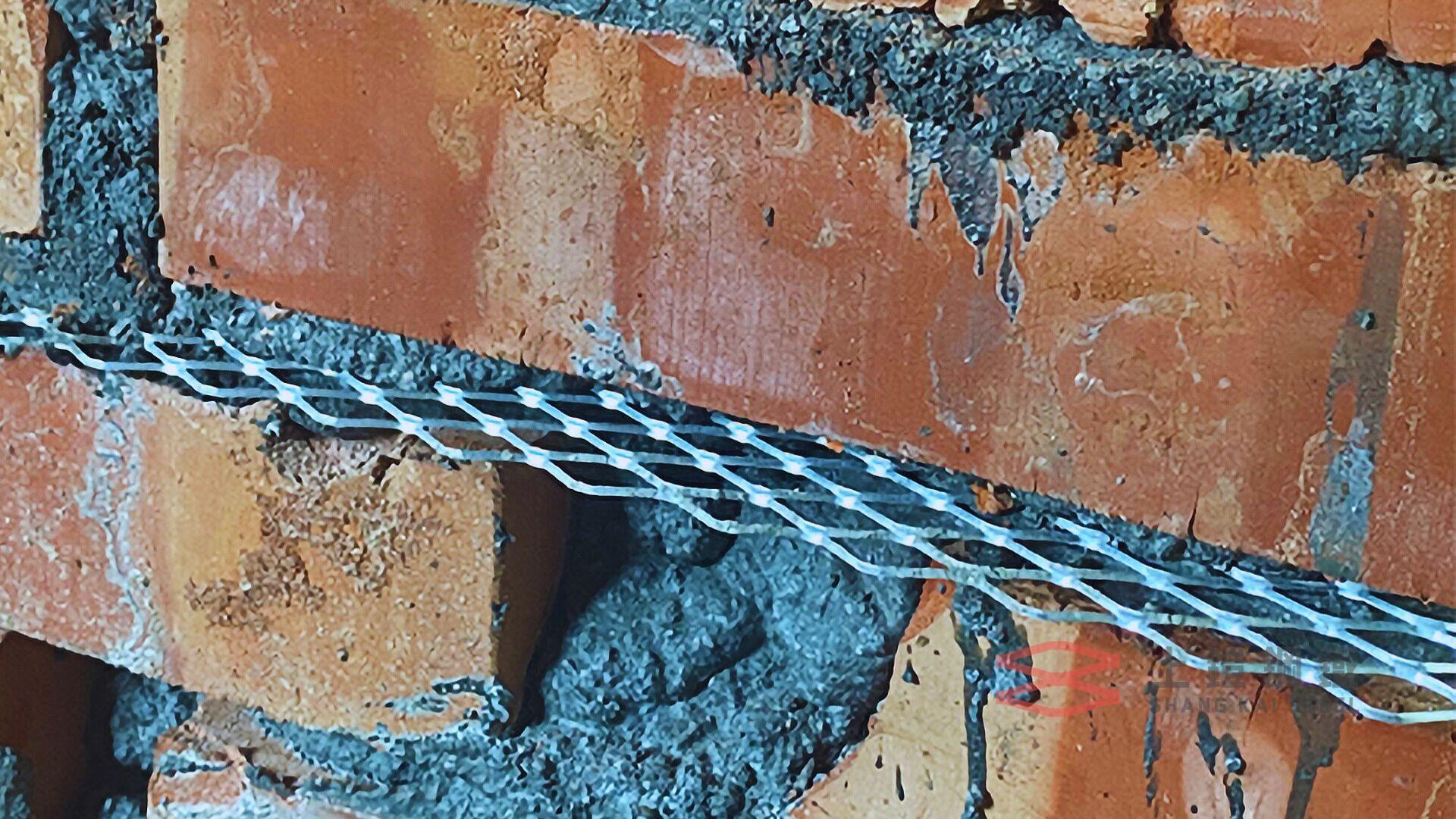

| 1.2KG | Background plaster, Landscape junction between dissimilar materials. |
| 0.92KG | Background plaster, Landscape junction between dissimilar materials. |
- Unit: mm
- We provide customized expanded metal solutions, including material selection, thickness, mesh opening％, Mesh dimensions,Sheet size, surface treatment, and other specification requirements.
Fire Protection Type｜Key Advantages
Fire-Resistant Performance
Can be coated with various fire-resistant materials to improve fire protection performance.
Enhanced Durability & Strength
The coating helps increase the durability and stability of the metal structure.
Ideal for Concrete & Plaster Applications
Works well with concrete and plaster to create seamless finishes around beams, columns, and structures.
Easy Installation
Designed for efficient application, helping simplify the construction process.
Seamless Structural Appearance

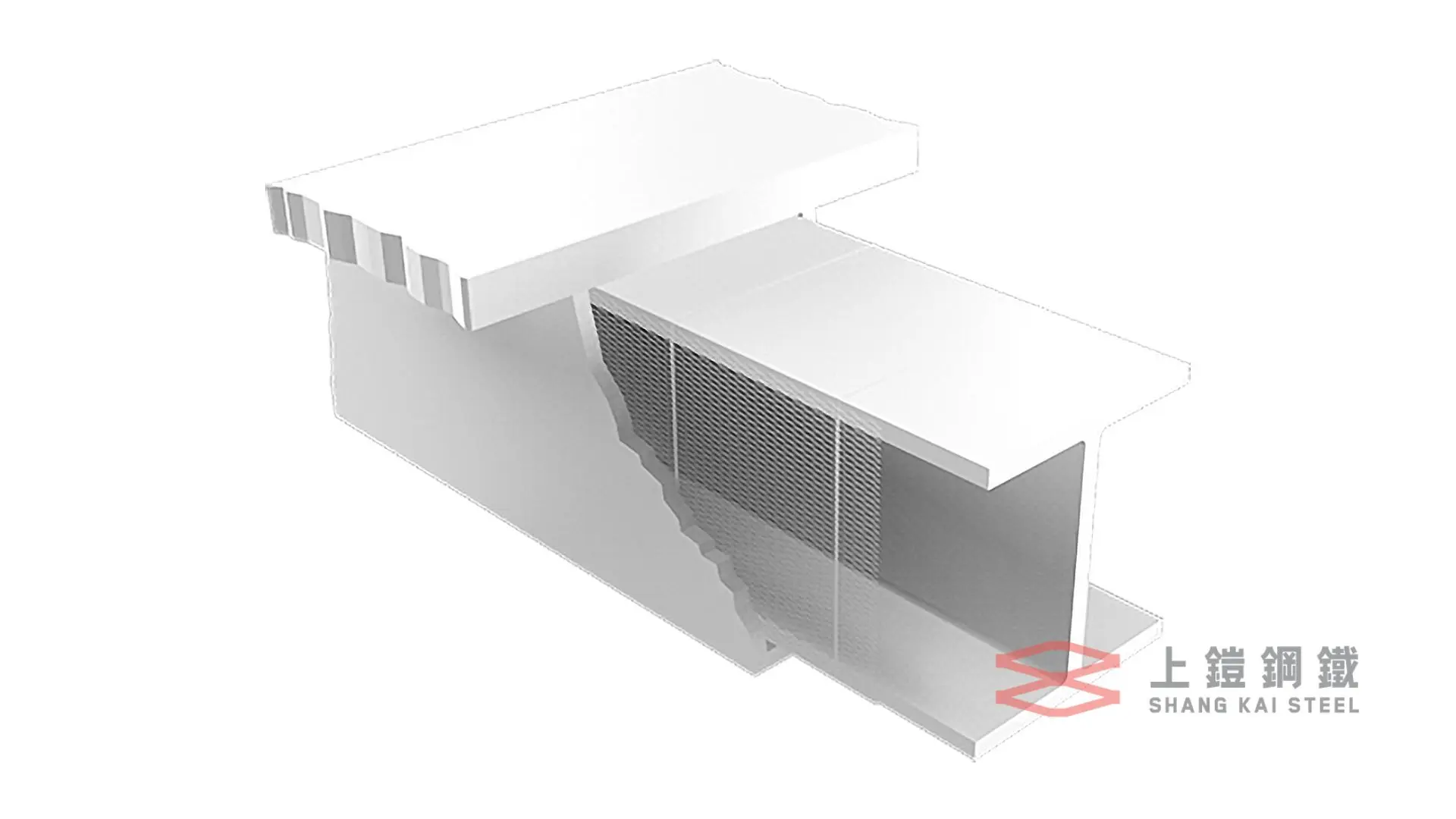

Suitable for covering beams, columns, and pipe areas while maintaining a clean and integrated look.
Fire Barrier Function
Helps form a protective layer around building structures, improving overall fire safety.
Pipe Protection
Can also be used to protect pipe systems while providing fire protection benefits.
Compatible with Suspended Framing Systems
When combined with Shang Kai’s suspended framing technology, it helps improve construction efficiency and installation flexibility.
Expanded Metal Technical Specifications
- SW: Short Way Dimension of Mesh
Distance between centers in the short way direction of the mesh. - LW: Long Way Dimension of Mesh
Distance between centers in the long way direction of the mesh. - Strand Width:
The width of each strand forming the diamond-shaped opening. - LWM: Length
Direction of the LW diamond. - SWM: Width
Direction of the SW diamond. - Thickness: Material Thickness
- Overall Thickness:
The overall thickness can be approximately 1 to 2.5 times the material thickness. - All thickness, strand width, and weight are subject to a tolerance of +/-5%.
- Standard sheet sizes: 3' x 6', 4' x 8', 5' x 10' and 8' x 4', 10' x 5' (LWM x SWM)
Mesh Style
- Standard / Raised type:
Standard expanded metal, also known as raised expanded metal or 3D mesh type, is produced by slitting and stretching a metal sheet to form diamond-shaped openings.
- Flattened type:
Flattened expanded metal, also known as 2D type, is made by passing standard expanded metal through a rolling process to flatten the raised strands and joints.
Standard / Raised type Flattened type
通用標準尺寸
Meterials
Mild Carbon steel, Stainless steel, Aluminum, Pre-galvanized steel sheet, Electro-galvanized steel sheet, Corten Steel, copper, titanium, nickel, silver, gold, and other ductile metal materials.
Surface Treatment
Hot-dip Galvanizing (Steel), Powder coating, Anodizing treatment, Fluorocarbon coating
